Professional Design Geological Soil Condition Foundation Construction Hydraulic Rotary Drilling Rig for Spt

Short Description:

● Max. drilling depth：20m

● Max. drilling diameter：1400mm

● Max. output torque：100kN.m

● Power：110kw, Cummins

INQUIRY

General Description

We rely upon strategic thinking, constant modernisation in all segments, technological advances and of course upon our employees that directly participate within our success for Professional Design Geological Soil Condition Foundation Construction Hydraulic Rotary Drilling Rig for Spt, To learn more about what we can do for you, contact us at any time. We look forward to establishing good and long-term business relationships with you.
We rely upon strategic thinking, constant modernisation in all segments, technological advances and of course upon our employees that directly participate within our success for China Drilling Rigs and Rock Core Drilling Rigs, Our company will continue to adhere to the ” superior quality, reputable, the user first ” principle wholeheartedly. We warmly welcome friends from all walks of life to visit and give guidance, work together and create a brilliant future!

Performance Characteristics

1.The structure of the upper guide frame ensures the perpendicularity of the drill pipe and the ground,
makes the construction more convenient, improves the construction efficiency and increases the
safety；
2.The original patent structure of the power head is reasonable in design, reliable in lubrication,
strong in power, cost-saving, not easy to damage and easy to maintain；
3.The structure is simple and delicate, the durability is good, the stability of the whole machine is
good, the cost is saved and the maintenance is more convenient;

4.Infinite rotation, double-lift winch, main winch to ensure the rated lifting weight, it’s more than twice
increased;
5.Equips with reasonable hydraulic system, keeps the oil temperature normal even in hot summer.

Technical Specifications

Item		Unit	Data
Name	Rotary Drilling Rig with Lock Pipe

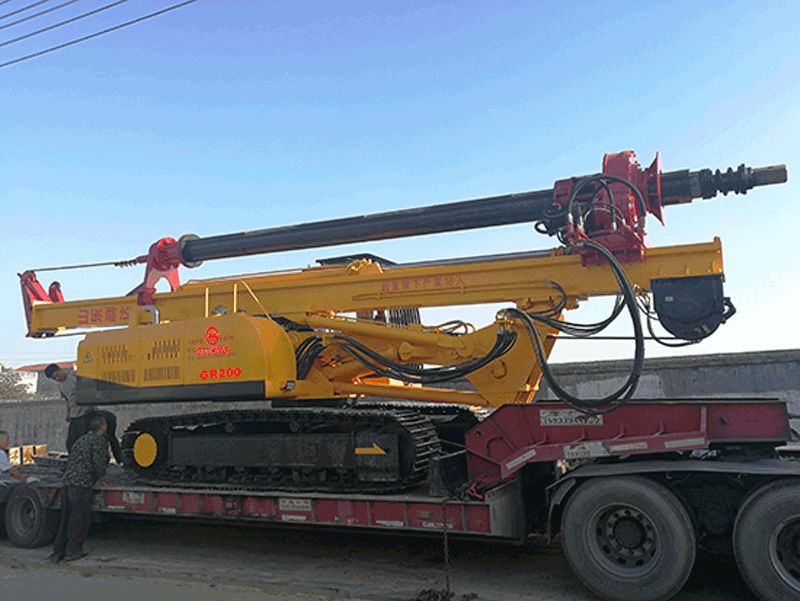

Model	GR200
Max. Drilling Depth		m	20
Max. Drilling Diameter		mm	1400
Engine		/	Cummins GBT5.9-C150
Rated Power		kW	110
Rotary Drive	Max. Output Torque	kN.m	100
Rotary Drive	Rotary Speed	r/min	17-35
Main Winch	Rated Pulling Force	kN	60
Main Winch	Max. Single-rope Speed	m/min	50
Auxiliary Winch	Rated Pulling Force	kN	15
Auxiliary Winch	Max. Single-rope Speed	m/min	30
Inclination of the Mast Lateral / Forward / Backward		/	±5/5/15
Pull-Down Cylinder	Max. Pull-down Piston Push Force	kN	80
	Max. Pull-down Piston Pull Force	kN	100
	Max. Pull-down Piston Stroke	mm	3000
Chassis	Max. Traveling Speed	km/h	2.5
	Max. Grade Ability	%	30
	Min. Ground Clearance	mm	360
	Track Board Width	mm	600
System Working Pressure		Mpa	32
Machine Weight (Exclude Drill Tools)		t	24
Overall Dimension	Working Status L×W×H	mm	7150×2600×11700
Overall Dimension	Transportation Status L×W×H	mm	9700×2600×3500
Remarks: Technical parameters are subject to change without prior notice. Technical parameters are customizable according to customer’s requirement.
