OEM Supply Ato Rice Mill - GH120 Rice Harvester – Gookma
OEM Supply Ato Rice Mill - GH120 Rice Harvester – Gookma Detail:
Specifications
| Name | Half Feeding Rice Combine Harvester | |||
| Model |
GH120 |
|||
| Sizes (L*W*H) (mm) (in) | 3650*1800*1820 (144*71*72) | |||
| Weight (kg) (lb) | 1480 (3267) | |||
| Engine | Model | 2105 | ||
| Type | Vertical water cooling two cylinder four stroke diesel engine | |||
| Rated output / speed [ps (KW) / rpm] | 35 (26) / 2400 | |||
| Fuel | Diesel | |||
| Starting Mode | Electrical starting | |||
| Walking Section | Track (pitch number*pitch*width) (mm) (in) | 42*90*350 (42*3.5*13.8) | ||
| Ground clearance (mm) (in) | 220 (8.7) | |||
| Shift mode | Hydrostatic continuously variable transmission (HST) | |||
| Shift grade | Stepless (subtransmission 2 grade ) | |||
| Walking speed | Forward (m/s) (ft/s) | low speed: 0-1.06, (0-3.48) high speed: 0-1.51 (0-4.95) | ||
| Backward (m/s) (ft/s) | llow speed: 0-1.06, (0-3.48) high speed: 0-1.51 (0-4.95) | |||
| Steering mode | Hydraulic control | |||
| Harvesting Section | Harvesting rows | 3 | ||
| Harvesting width (mm) (in) | 1200 (47) | |||
| Cutting height range (mm) (in) | 50-150 (1.97*5.9) | |||
| Adaptable height of crop (full height) (mm) (in) | 650-1200 (25.6*47.3) | |||
| Fallen crops adaptability (degrees) | Cutting forward direction: ≤75° Cutting reverse direction: ≤65° | |||
| Threshing depth control system | Manual | |||
| Gear of cutting table | 3 levels (low speed, high speed, middle speed) | |||
| Threshing Section | Threshing system | Monocular, axial, low detachable | ||
| Threshing cylinder | Diameter* length (mm) (in) | 380*665 (15*26.2) | ||
| Speed (rpm) | 630 | |||
| Secondary transmission mode | Screw auger | |||
| Screening method | Shaking, blasting, sucking | |||
| Grain Discharging Section | Grain Discharging | Funnel | ||
| Grain tank | Capacity [L (bag × 50L) ] | 105 (2×50) | ||
| Grain unloading port | 2 | |||
| Straw Cutting Section | Factory style | Straw cutting length (mm)(in) | 65 (2.6) | |
| Working Efficiency | Ha/h | 0.1 – 0.2 | ||
| Technical parameters are subject to change without prior notice. | ||||
● Agile mobility
● For working in small and medium fields
● Half feeding, keeps straws
● Harvesting width：1200mm
● Production capacity: 0.1-0.2ha/h
● Wide adaptability for fallen crops

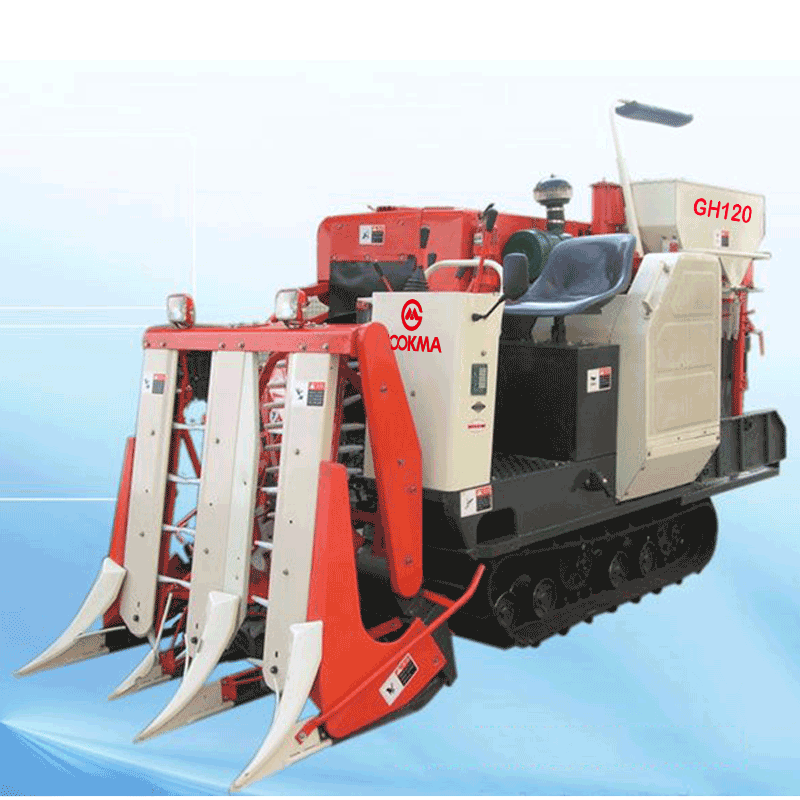

GH120 Half-feeding Combine Rice Harvester
Features and Advantages:
1.Gookma GH120 half feeding combine rice harvester is a national major support project of agricultural machinery.
2.It’s convenient in operating, it may be operated by both male and female easily. It’s small size,light weight, easy in travel control,flexible in turning. It’s simple in disassembling and convenient for maintenance.
3.It’s of strong power and grade ability,it can pass the ridges conveniently and flexibly.
4.With high adaptability, it can be operated in both dry fields and paddy fields, and is suitable for harvesting in the large fields in plain areas and in the small fields in hill areas.
5.The machine is of compact structure, threshes in two times. The first threshing integrates threshing and conveying, and the second threshing integrates threshing and sundries removal. The overall threshing effect is good.
6.It can be widely adaptable for fallen crops.
7.It’s of low fuel consumption and high working efficiency.
8.Mini half-feeding is the current advanced harvesting technology in the world. It keeps straws, and ensures the recycling of straws easily and conveniently.
Application Cases
Gookma small half feeding combine rice harvester is suitable for both family use and for small business purpose, it has been selling well and very popular in both domestic and overseas market, and has been enjoying high reputation among customers.
