Motorcycle SY110-X1/SY125-21B/SY150-16C/SY200-9F
Product Display Chart
Gookma company specializes in manufacturing motorcycle of 50CC, 110CC, 125CC, 150CC and 200CC series, there are more than 30 models. Gookma company strictly comply with ISO9001 2000 quality control system for product development, components purchasing, inspection, whole vehicle production, transportation and service etc. We have two modern assembly lines for whole motorcycle, two assembly lines for engine, MST-3 inspection lines for whole motorcycle and many other high technical instruments. With strong technology, Gookma constantly innovates, improves and supplies high quality motorcycle to the domestic and international market.
Features and Advantages
High Quality Major Parts Ensure High Quality of the Motorcycle
① Clutch
Auto-dual clutch with “Fuji” friction plate, stable, smooth and durable.
② Cam Plate / Tappet
With improved shape and structure For easy and smooth gear shifting.
③ Oil Filter
With external oil filter structure for convenient care and maintenance.
④ Oil Pump
With high power oil pump for better lubrication and easy oil circulation.
⑤ Piston Ring
Piston ring with DLC technology for better wear resistance and service life.
⑥ Roller Rocker
With the roller rocker with less friction, less mechanical loss and stronger power.
⑦ Cylinder Head
Interlaced Gas Channels: Working together with the middle spark plug for better gas
mixture, faster fire spread and better combustion to ensure less emission and fuel consumption.

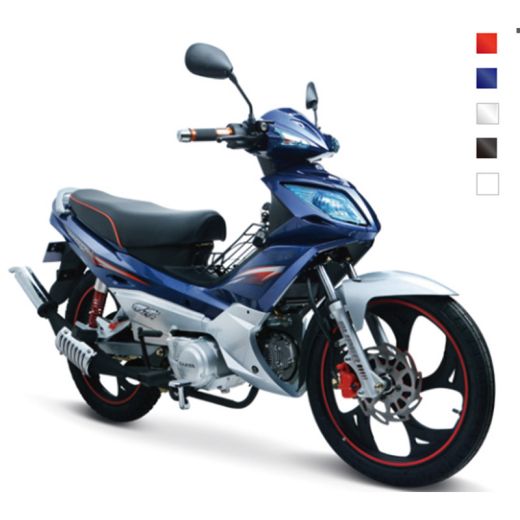

1.The small size Cub has strong power for double clutch 50cc engine and simple light design.
2.New double headlight design makes the light shape more stereoscopic.
3.Highly recognizable headlight provides safer driving during night time.
4.The 17 inch front & rear wheel and lower seat meet the needs of a wider range of end users.
5.Equipped with magnetic keyhole cover, prevents from unlocking
violently.
6.Additional anti-theft device effectively prevents from stealing.
|
DIMENSION |
|||
|
Length*Width*Height |
(mm) |
1920x 710x 1130 |
|
|
Wheel Base |
(mm) |
1250 |
|
|
Seat Height |
(mm) |
765 |
|
|
Ground Clearance |
(mm) |
150 |
|
|
Curb Weight |
(kg) |
104 |
|
|
Max. Capacity |
(persons/kg) |
2 /150 |
|
|
FRAME |
|||
|
Type |
girder |
||
|
Front Suspension |
|
Hydraulic damping type |
|
|
Rear Suspension |
|
Hydraulic damping type |
|
|
Front Tyre |
|
2.50-17 |
Normal/Tubeless |
|
Rear Tyre |
|
2.75-17 |
Normal/Tubeless |
|
Front Brake |
Hydraulic Disk |
Hydraulic Disk |
|
|
Rear Brake |
Hydraulic Disk |
Drum brake |
|
|
Fuel Capacity |
(L) |
4 |
|
|
ENGINE |
|||
|
Type |
|
4-Stroke |
Air cooling |
|
Cylinder Arrangement |
Horizontal, single cylinder |
|
|
|
Bore × Stroke |
(mm) |
52.4 x 49.5 |
|
|
Displacement |
(ml) |
107 |
|
|
Compression Ratio |
|
9.1: 1 |
|
|
Valve Train |
Single overhead camshaft |
2V |
|
|
Maximum Horsepower |
(kW / rpm) |
5.0 / 8000 |
|
|
Maximum Torque |
(N•m / rpm) |
7.0 / 6000 |
|
|
Fuel System |
|
Carburetor |
|
|
Lubrication System |
Pressure and splash lubrication combination |
||
|
DRIVE |
|||
|
Clutch |
Wet multi disc (automatic clutch) |
||
|
Transmission |
Chain |
|
|
|
Gear Shift Pattern |
Four-speed gear |
|
|
|
ELECTRICAL |
|||
|
Ignition System |
CDI |
|
|
|
Starting System |
Electric start/Foot start |
||
|
PACKING WAY |
DIMENSION |
QUANTITY |
|
40HQ |
||
|
SKD-wooden panels with carton outside |
1700×460×860 |
105 |
|
SKD-metal frame with carton outside |
1700×460×860 |
105 |
|
CKD-wooden case with engine pack inside |
/ |
/ |
|
CKD-wooden case without engine pack inside |
1230×760×372 |
196 |
|
CKD-carton |
/ |
/ |

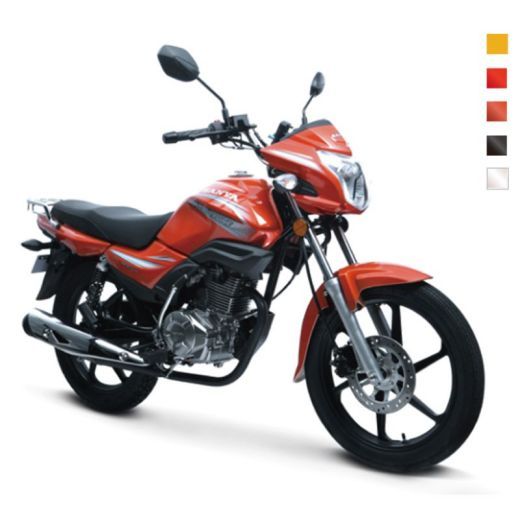

A headlight with sharp angles and light concentration, new designed and dynamic speedometer, high elasticity and comfortable seat, and fashionable appearance make the driver be the spotlight on the street.
|
DIMENSION |
|||||||
|
Overall Length*Width*Height |
(mm) |
2050×790×1110 |
|||||
|
Wheel Base |
(mm) |
1310 |
|||||
|
Seat Height |
(mm) |
780 |
|||||
|
Ground Clearance |
(mm) |
150 |
|||||
|
Curb Weight |
(kg) |
130 |
|||||
|
Max. Capacity |
(persons/kg) |
2 /150 |
|||||
|
FRAME |
|||||||
|
Type |
Jumper diamond frame |
||||||
|
Front Suspension |
|
Spring hydraulic damping type |
|||||
|
Rear Suspension |
|
Spring hydraulic damping type |
|||||
|
Front Tyre |
|
2.75-18 |
Ordinary |
||||
|
Rear Tyre |
|
3.25-18 |
Ordinary |
||||
|
Front Brake |
|
Disk Brake |
|
||||
|
Rear Brake |
|
Drum Brake |
|
||||
|
Fuel Capacity |
(L) |
14.5 |
|
||||
|
ENGINE |
|||||||
|
Type |
|
4-Stroke |
Natural air cooling |
||||
|
Cylinder Arrangement |
|
Vertical, single cylinder |
|
||||
|
Bore × Stroke |
(mm) |
56.5 ×49.5 |
|
||||
|
Displacement |
(ml) |
124 |
|
||||
|
Compression Ratio |
|
9.2: 1 |
|
||||
|
Valve Train |
|
Bottom type camshaft |
2V |
||||
|
Max Horsepower |
(kW / rpm) |
8.0 / 8500 |
|
||||
|
Maximum Torque |
(N•m / rpm) |
8.5 / 7000 |
|
||||
|
Fuel System |
|
Carburetor |
|
||||
|
Lubrication System |
Pressure and splash lubrication combination |
||||||
|
DRIVE |
|||||||
|
Clutch |
Wet-type multi sheet |
||||||
|
Transmission |
Chain |
|
|||||
|
Gear Shift Pattern |
Five-speed gear(cycle) |
||||||
|
ELECTRICAL |
|||||||
|
Ignition System |
CDI |
|
|||||
|
Starting System |
Electric start/Foot start |
|
|||||
|
PACKING WAY |
DIMENSION |
QUANTITY |
|||||
|
40HQ |
|||||||
|
SKD-wooden panels with carton outside |
1910×480×865 |
90 |
|||||
|
SKD-metal frame with carton outside |
/ |
/ |
|||||
|
CKD-wooden case with engine pack inside |
/ |
/ |
|||||
|
CKD-wooden case without engine pack inside |
1360×635×375 |
170 |
|||||
|
CKD-carton |
/ |
/ |
|||||

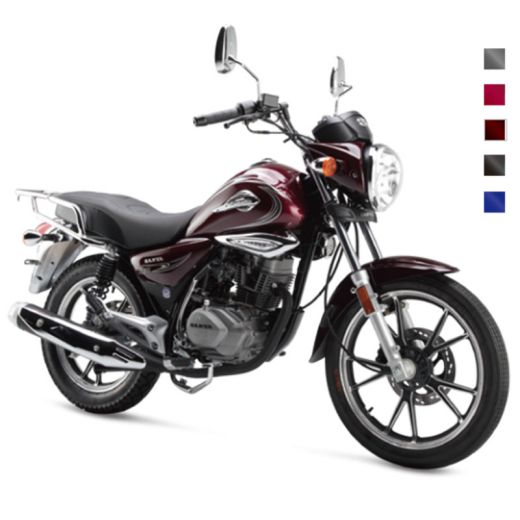

1.Equips with14.5 liters large fuel tank satisfies the trips where you want to go;
2.With three-dimensional signs(labels), full of dynamic.
3.New LCD display instrument(digital meter), Stylish, All functions are complete, all the data under your control.
4.The whole car chrome-plated decorative parts, Demonstrate superior style 5. Equipped with UFB150 engine of self-developed, it has strong power and minimizes vibration.
|
DIMENSION |
|||
|
Overall Length*Width*Height |
(mm) |
2010 x 780 x1130 |
|
|
Wheel Base |
(mm) |
1280 |
|
|
Seat Height |
(mm) |
780 |
|
|
Ground Clearance |
(mm) |
150 |
|
|
Curb Weight |
(kg) |
125 |
|
|
Max. Capacity |
(persons/kg) |
2 /150 |
|
|
FRAME |
|||
|
Type |
|
||
|
Front Suspension |
|
Hydraulic damping type |
|
|
Rear Suspension |
|
Hydraulic damping type |
|
|
Front Tyre |
|
3.00-18 |
|
|
Rear Tyre |
|
3.50-16 |
|
|
Front Brake |
|
Hydraulic Disk |
|
|
Rear Brake |
|
Drum Brake |
|
|
Fuel Capacity |
(L) |
14.5 |
|
|
ENGINE |
|||
|
Type |
|
4-Stroke |
Natural air cooling |
|
Cylinder Arrangement |
|
Vertical, single cylinder |
Inclined type |
|
Bore × Stroke |
(mm) |
57.3 × 57.8 |
|
|
Displacement |
(ml) |
149 |
|
|
Compression Ratio |
|
9.2: 1 |
|
|
Valve Train |
|
single overwheel camshaft |
2V |
|
Maximum Horsepower |
(kW / rpm) |
8.5 / 8000 |
|
|
Maximum Torque |
(N•m / rpm) |
11.2 / 7000 |
|
|
Fuel System |
|
Carburetor |
|
|
Lubrication System |
|
Pressure and splash lubrication combination |
|
|
DRIVE |
|||
|
Clutch |
Multi piece wet-type constant meshing |
||
|
Transmission |
Chain |
|
|
|
Gear Shift Pattern |
International five-speed gear |
|
|
|
ELECTRICAL |
|||
|
Ignition System |
CDI |
|
|
|
Starting System |
Electric start/Foot start |
||

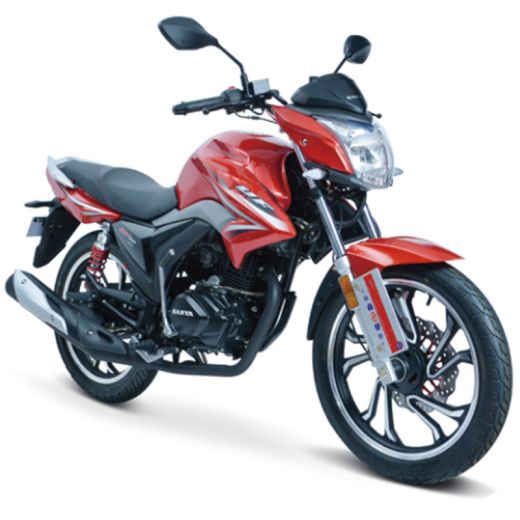

1.New self-developed UF190 engine, a maximum power of 13.5N•m and a maximum output of 9.6kW.
2.17L large capacity fuel tank satisfies your demand of long-distance travel.
3.Stylish and exquisite mechanical and liquid crystal display integrated meter, started with dynamic music.
4.High brightness ≥12000CD eagle shape headlight, has strong light condensation and high light penetrability.
5.LED winkers and ruby LED taillight design provides users with superiority feeling.
6.Comply with ergonomic body design, this sports
car-class seat is designed scientifically and logically.
|
DIMENSION |
||||
|
Overall Length*Width*Height |
(mm) |
2050x 755x 1085 |
||
|
Wheel Base |
(mm) |
1280 |
||
|
Seat Height |
(mm) |
765 |
||
|
Ground Clearance |
(mm) |
150 |
||
|
Curb Weight |
(kg) |
127 |
||
|
Max. Capacity |
(persons/kg) |
2 /150 |
||
|
FRAME |
||||
|
Type |
rhombus |
|||
|
Front Suspension |
|
Hydraulic damping type |
||
|
Rear Suspension |
|
Hydraulic damping type |
||
|
Front Tyre |
|
2.75-18 |
Tubeless/Normal |
|
|
Rear Tyre |
|
90/90-18 |
Tubeless/Normal |
|
|
Front Brake |
|
Hydraulic Disk |
Hydraulic Disk |
|
|
Rear Brake |
|
Hydraulic Disk |
Drum brake |
|
|
Fuel Capacity |
(L) |
17 |
|
|
|
ENGINE |
||||
|
Type |
|
4-Stroke |
Natural air cooling |
|
|
Cylinder Arrangement |
|
Vertical, single cylinder |
|
|
|
Bore × Stroke |
(mm) |
65.5 x 57.8 |
|
|
|
Displacement |
(ml) |
195 |
|
|
|
Compression Ratio |
|
9.2 : 1 |
|
|
|
Valve Train |
|
Single overhead camshaft |
2V |
|
|
Max Horsepower |
(kW / rpm) |
9.6 / 7000 |
|
|
|
Maximum Torque |
(N•m / rpm) |
13.5 / 5500 |
|
|
|
Fuel System |
|
Carburetor |
|
|
|
Lubrication System |
|
Pressure and splash lubrication combination |
|
|
|
DRIVE |
||||
|
Clutch |
Multi piece wet-type constant meshing |
|||
|
Transmission |
Chain |
|
||
|
Gear Shift Pattern |
International five-speed gear |
|
||
|
ELECTRICAL |
||||
|
Ignition System |
CDI |
|
||
|
Starting System |
Electric start/Foot start |
|||
