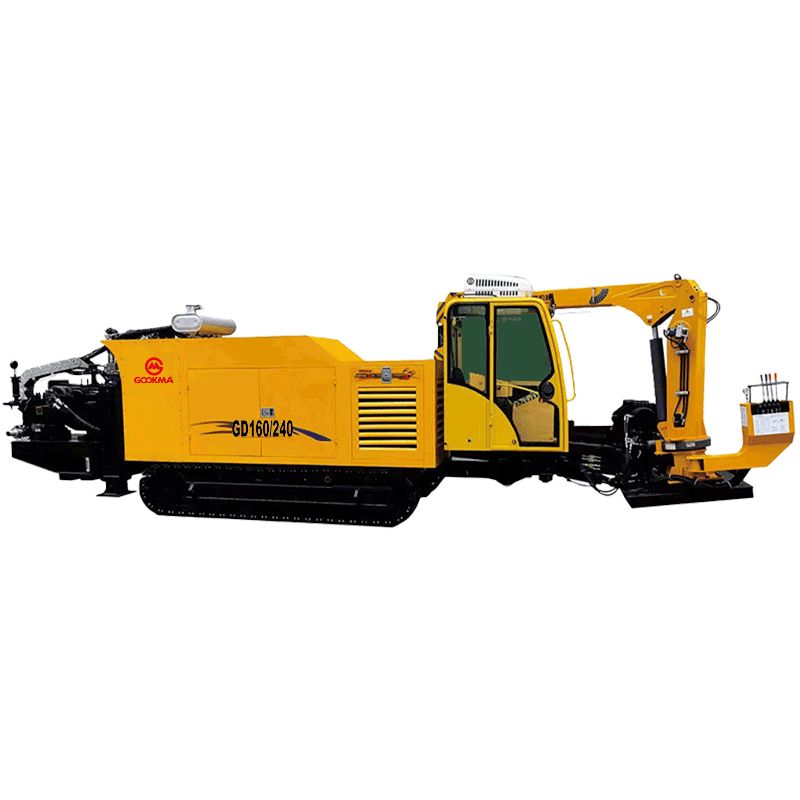

2023 China New Design New Trenchless Horizontal Directional Drill Drilling Machine
Our company promises all buyers of the first-class products and solutions as well as most satisfying post-sale support. We warmly welcome our regular and new shoppers to join us for 2023 China New Design New Trenchless Horizontal Directional Drill Drilling Machine, When you are interested in any of our items or would want to go over a personalized get, please experience absolutely free to speak to us.
Our company promises all buyers of the first-class products and solutions as well as most satisfying post-sale support. We warmly welcome our regular and new shoppers to join us for China Drilling Rig and Core Drilling Rig, All these merchandise are manufactured in our factory located in China. So we can guarantee our quality critically and availably. Within these four years we sell not only our goods but also our service to clients throughout the world.
Performance Characteristics
1. Close-type hydraulic system, high energy saving, high efficiency, high reliability, long life.
2. With Cummins engine, turbo-charged, strong power, stable performance, low noise, low fuel consumption.
3. International famous branded electricity ratio hydraulic motor, with rack and pinion system, simple structure, reliable performance, high efficiency. Push-pull and rotating with HST mechanics, push-pull force reach 2400kN.
4. International famous branded double speed motor, travelling speed can reach 6km/h, no need to load on trailer for short distance sites shifting.
5. Center position of the clamper is low, provides good protection of the drill rods, and take small space for operation. The front clamper and rear clamper can be separated, clamping blocks can be replaced according to the specification of drill rods.
6. The power head can be moved, protects the drill rod thread.
7. Adopts four connecting rod luffing mechanism, big angle variable range, low center of gravity, makes the machine good stability.
8. Wire control travelling system, assures safety and quick for travelling, loading and unloading.
9. Intelligent program control system, comfortable for operating, stable performance, with strong function expansibility.
10. The cabin with big space, full view, can move up and down, equips with air conditioner.
Technical Specifications

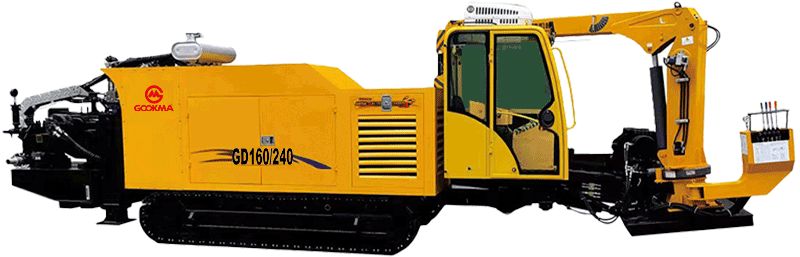

| Model | GD160/240 |
| Engine | Cummins |
| Power | 336kw |
| Max torque | 80000N.m |
| Push-pull drive type | Rack and pinion |
| Max push-pull force | 1600-2400kN |
| Max push-pull speed | 47m/min. |
| Max slewing speed | 100rpm |
| Max reaming diameter | 1600mm (depends on soil condition) |
| Max drilling distance | 1200m (depends on soil condition) |
| Drill rod | φ127*6000mm |
| Walking drive type | Crawler self-propelling |
| Walking speed | 3–6km/h |
| Entry angle | 8-18° |
| Max gradeability | 20° |
| Overall dimensions | 11800*3000*3500mm |
| Machine weight | 30000kg |

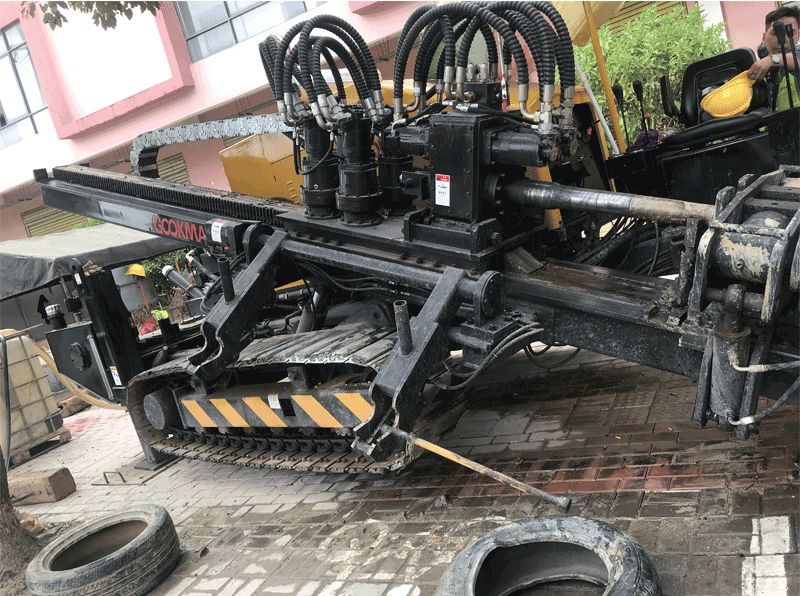

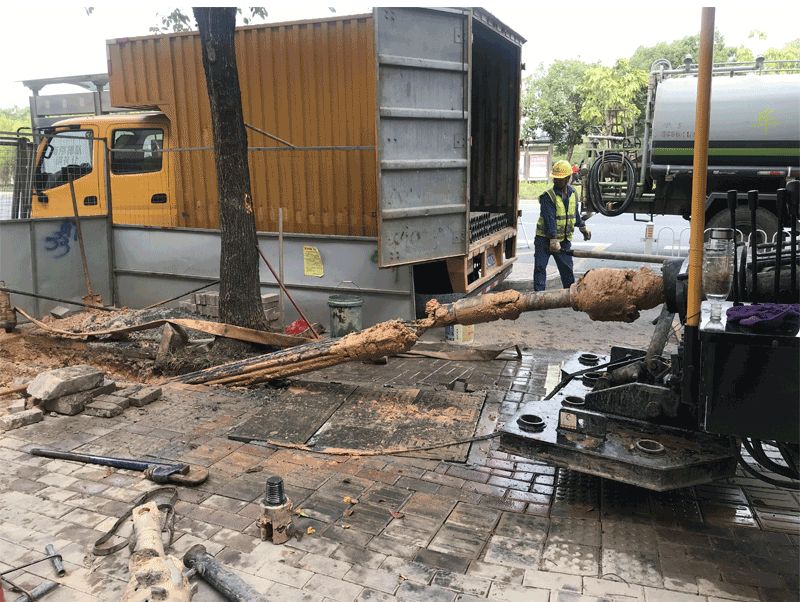

Applications

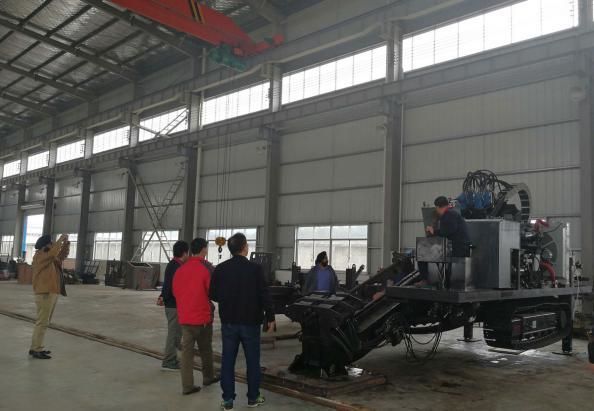

Production Line
Working Video
2019 China New Design China Drilling Rig and Core Drilling Rig, All these merchandise are manufactured in our factory located in China. So we can guarantee our quality critically and availably. Within these four years we sell not only our goods but also our service to clients throughout the world.
